Chemical plants / hazardous Environments

Flameproof Light
Wellglass Light
Specifications:

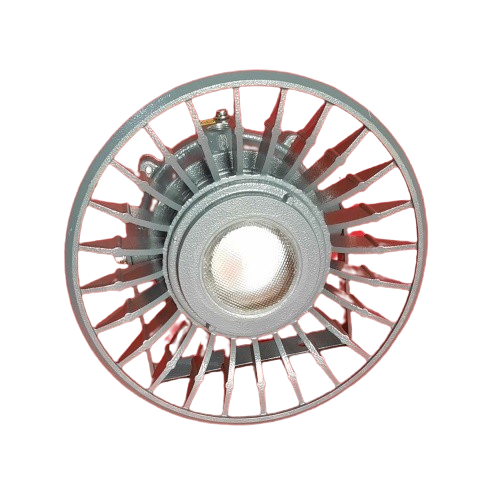

Flameproof Light-
  • Efficacy – 190 Lm/W
  • Total Lumens Output – From 15,200 (80W) to 45,600 (240W)
  • Wattage – 60W to 240W
  • Efficiency – >0.95
  • THD – <10%
  • CCT – 4000K/5700K/6500K
  • Beam Angle – 60/90
  • IP Rating – IP65
  • Material – Aluminium die-cast and PC
  • Surge Protection – -10kV + 4kV (internal)
  • Ripple Current – 2%
  • Protection – Over current, short circuit, 440V overvoltage 48 hours, over voltage, input over voltage

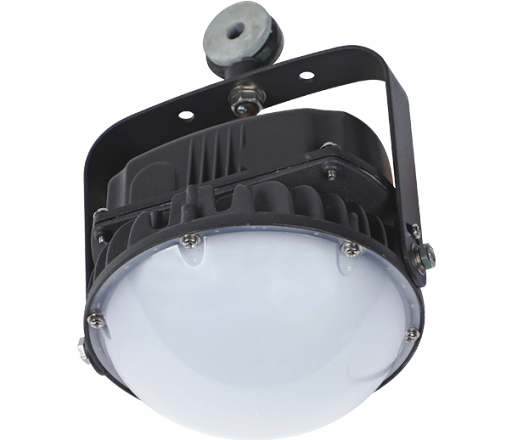

Wellglass Light-
      • Efficacy – 150 Lumens per Watt
      • Total Lumens Output – 6,000 to 9,000 Lumens
      • Wattage – 40W to 60W
      • Efficiency – >0.95
      • THD – <10%
      • CCT – 6500K
    Finless design for less dust accumulation. Sleeve in eye bolt for vibration resistance.
    • IP Rating – IP66
    • Material – Die-cast aluminum with polycarbonate lens.
    • Surge Protection – 10kV
    • Ripple Current – <10%
Flameproof Light-
  • PESO and CIMFR Certified. Benefit – These certifications speak to the quality of the product, and hold weightage in any high-value project including flameproof lighting. These certifications have allowed us to bag orders with multiple high-profile companies in the chemical sector.
  • High energy efficacy of 140 Lm/W.
    Benefit – Even in the COB domain, we have a very high energy efficiency. As a result we can provide the same output as our competitors can provide while using significantly less power or we can provide a higher lumens output at the wattage provided by comparable brands.
  • Certified for gas groups IIA, IIB, IIC.
    Benefit – This classifications means that even in areas where a small spark can set off hazardous gases, our product can function perfectly. This is a result of the engineering behind the housing, drivers, and product assembly.
  • High-quality driver with over voltage protection, short circuit protection, over temperature protection, input over voltage protection, etc. and minimum 10kV surge protection.
    Benefit – Top of the line, high quality drivers used in this ensure very high efficiency. When our lights go into environments with unpredictable climate and conditions, the protections provided make sure there is no harm caused to the personnel working as a result of the unpredictable electrical conditions in industrial areas.
Wellglass Light-
  • Milky Diffuser for Glare-free uniform illumination.
    Benefit – Often the requirement of light is high in places where there is constant presence and movement of personnel. This can cause either bright spots or glare when viewed directly. To avoid this, our Wellglass light can provide uniform glare-free light without sacrificing illumination intensity. This makes them ideal for pathways, paintshops, cold-storage or any areas with lots of reflective surfaces..
  • High energy efficacy of 160 Lm/W.
    Benefit – Even in the wellglass domain, we have a very high energy efficiency. As a result we can provide the same output as our competitors can provide while using significantly less power or we can provide a higher lumens output at the wattage provided by comparable brands .
  • High-quality driver with over voltage protection, short circuit protection, over temperature protection, input over voltage protection, etc. and minimum 10kV surge protection.
    Benefit – Top of the line, high quality drivers used in this ensure very high efficiency. When our lights go into environments with unpredictable climate and conditions, the protections provided make sure there is no harm caused to the personnel working as a result of the unpredictable electrical conditions in industrial areas.
Download Catalogue for Flameproof Lights
Download Catalogue for Wellglass Lights
