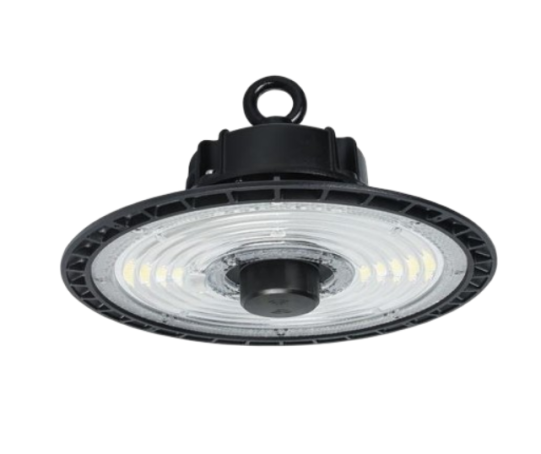

High Bay Lights

Specifications:
  • Efficacy – 190 Lm/W
  • Total Lumens Output – From 15,200 (80W) to 45,600 (240W)
  • Wattage – 60W to 240W
  • Efficiency – >0.95
  • THD – <10%
  • CCT – 4000K/5700K/6500K
  • Beam Angle – 60/90
  • IP Rating – IP65
  • Material – Aluminium die-cast and PC
  • Surge Protection – -10kV + 4kV (internal)
  • Ripple Current – 2%
  • Protection – Over current, short circuit, 440V overvoltage 48 hours, over voltage, input over voltage
  • Highest energy efficacy in India with more than 190 Lumens per Watt.
    Benefit – When compared to any other brand, we can either provide the same Lumens output
  • Daylight harvesting sensor add-on.
    Benefit – Highbays are fitted with a sensor which automatically adjusts the wattage of the light as per sunlight conditions.
  • Alumium Die-cast Housing with integrated heat sink.
    Benefit – Narrow heat sink blades allow for more surface area in order for maximum heat to be dissipated.
  • High-quality driver with over voltage protection, short circuit protection, over temperature protection, input over voltage protection, etc. and minimum 10kV surge protection.
    Benefit – Top of the line, high quality drivers used in this ensure very high efficiency.
Download Catalogue
